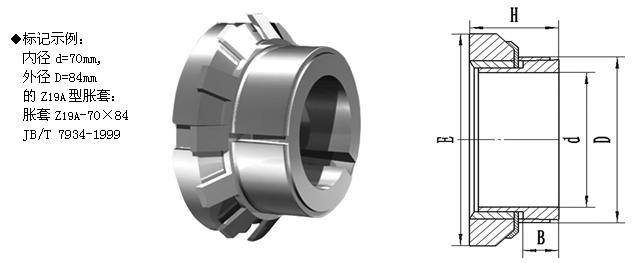

Z19A型脹緊聯結套的基本尺寸和參數 (JB/T 7934—1999)
|
基本尺寸mm
|
額定負荷
|
螺 母
|
脹套與軸結合面上的壓力Pf
N／mm2
|
脹套與輪轂結合面上的壓力 Pf＇
N／mm2
|
重量
kg
|
|
d
|
D
|
E
|
H
|
B
|
轉矩Mt
kN·m
|
軸向力
Ft
kN
|
d1
|
擰緊力矩
MA
N·m
|
|
14
|
25
|
32
|
16.5
|
6.5
|
38
|
5.10
|
M20×1
|
95
|
200
|
110
|
0.05
|
|
15
|
25
|
32
|
16.5
|
6.5
|
41
|
5.50
|
M20×1
|
95
|
185
|
110
|
0.04
|
|
16
|
25
|
32
|
16.5
|
6.5
|
43
|
5.45
|
M20×1
|
95
|
174
|
110
|
0.04
|
|
17
|
26
|
32
|
16.5
|
6.5
|
47
|
5.50
|
M20×1
|
95
|
164
|
107
|
0.04
|
|
18
|
26
|
32
|
16.5
|
6.5
|
49
|
5.40
|
M22×1
|
95
|
155
|
107
|
0.04
|
|
18
|
30
|
38
|
16.5
|
6.5
|
58
|
6.60
|
M25×1.5
|
160
|
185
|
112
|
0.06
|
|
19
|
30
|
38
|
18
|
6.5
|
62
|
6.60
|
M25×1.5
|
160
|
176
|
112
|
0.06
|
|
20
|
30
|
38
|
18
|
6.5
|
66
|
6.60
|
M25×1.5
|
160
|
167
|
111
|
0.06
|
|
22
|
32
|
38
|
18
|
6.5
|
73
|
6.60
|
M25×1.5
|
160
|
152
|
105
|
0.06
|
|
24
|
35
|
45
|
18
|
6.5
|
105
|
8.75
|
M30×1.5
|
220
|
185
|
127
|
0.08
|
|
25
|
35
|
45
|
18
|
6.5
|
110
|
8.80
|
M30×1.5
|
220
|
178
|
127
|
0.07
|
|
28
|
36
|
45
|
18
|
6.5
|
120
|
8.55
|
M32×1.5
|
220
|
159
|
124
|
0.06
|
|
28
|
40
|
52
|
18
|
6.5
|
149
|
10.6
|
M35×1.5
|
340
|
188
|
141
|
0.09
|
|
30
|
40
|
52
|
19.5
|
7
|
160
|
10.6
|
M35×1.5
|
340
|
164
|
123
|
0.09
|
|
32
|
42
|
52
|
19.5
|
7
|
170
|
10.6
|
M36×1.5
|
340
|
154
|
117
|
0.09
|
|
35
|
45
|
58
|
21.5
|
8
|
230
|
13.1
|
M40×1.5
|
480
|
153
|
120
|
0.11
|
|
36
|
45
|
58
|
21.5
|
8
|
240
|
13.3
|
M40×1.5
|
480
|
149
|
120
|
0.10
|
|
38
|
48
|
58
|
21.5
|
8
|
250
|
13.1
|
M42×1.5
|
480
|
141
|
112
|
0.12
|
|
38
|
50
|
58
|
21.5
|
8
|
250
|
13.1
|
M42×1.5
|
480
|
141
|
112
|
0.14
|
|
40
|
50
|
65
|
24.5
|
10
|
310
|
15.5
|
M42×1.5
|
680
|
124
|
93
|
0.14
|
|
40
|
52
|
65
|
24.5
|
10
|
310
|
15.5
|
M45×1.5
|
680
|
120
|
93
|
0.17
|
|
42
|
55
|
65
|
25.5
|
10
|
320
|
15.2
|
M48×1.5
|
680
|
114
|
87
|
0.2
|
|
45
|
55
|
70
|
25.5
|
10
|
400
|
17.7
|
M50×1.5
|
870
|
122
|
96
|
0.16
|
|
45
|
57
|
70
|
25.5
|
10
|
400
|
17.7
|
M50×1.5
|
870
|
122
|
96
|
0.20
|
|
48
|
60
|
75
|
25.5
|
10
|
500
|
20.8
|
M55×2
|
970
|
135
|
105
|
0.21
|
|
50
|
60
|
75
|
25.5
|
10
|
520
|
20.8
|
M55×2
|
970
|
130
|
105
|
0.18
|
|
50
|
62
|
75
|
25.5
|
10
|
520
|
20.8
|
M55×2
|
970
|
130
|
105
|
0.22
|
|
55
|
65
|
80
|
27.5
|
12
|
610
|
22.0
|
M60×2
|
1100
|
103
|
84
|
0.21
|
|
55
|
68
|
80
|
27.5
|
12
|
610
|
22.0
|
M60×2
|
1100
|
103
|
84
|
0.28
|
|
56
|
68
|
80
|
27.5
|
12
|
620
|
22.0
|
M60×2
|
1100
|
101
|
82
|
0.26
|
|
60
|
70
|
85
|
30.0
|
12
|
800
|
26.6
|
M65×2
|
1300
|
113
|
93
|
0.24
|
|
60
|
73
|
85
|
30.5
|
12
|
800
|
26.6
|
M65×2
|
1300
|
113
|
93
|
0. 33
|
|
63
|
79
|
92
|
30.5
|
14
|
980
|
31.1
|
M7O×2
|
1600
|
107
|
86
|
0.43
|
|
65
|
79
|
92
|
30.5
|
14
|
1010
|
31.0
|
M7O×2
|
1600
|
104
|
86
|
0.38
|
|
70
|
84
|
98
|
31.5
|
14
|
1240
|
35.4
|
M75×2
|
2000
|
110
|
92
|
0.42
|
